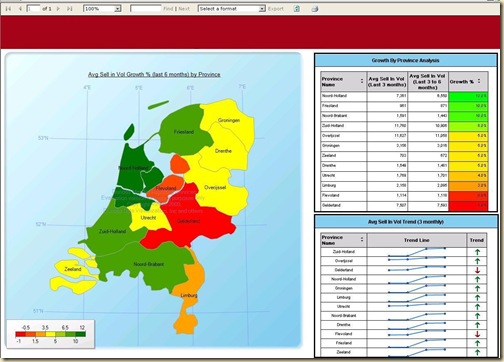

Around 6 months ago, I was desperately looking for some online resources to help me implement some map reports. The shapefile I was dealing with was at a very granular level (which means that it had a lot of data, 2.5 MB in size), and we needed to do some custom aggregations on the spatial data. As the custom aggregations were done at report run time, it turned out to be a major performance bottleneck. That was when this blog by Sean Boon -
c:\windows\microsoft.net\framework\v3.5\csc /t:library /r:Microsoft.SqlServer.Types.dll C:\assemblies\aggregate.cs
3. Execute T-SQL to register the aggregate functions in SQL Server 2008
CREATE ASSEMBLY SpatialAggregate FROM 'c:\assemblies\Aggregate.dll'
CREATE AGGREGATE EnvelopeAggregate(@input GEOMETRY) RETURNS GEOMETRY
external name [SpatialAggregate].[SilverlightEarth.Geoquery.SqlClr.EnvelopeAggregate]
CREATE AGGREGATE UnionAggregate(@input GEOMETRY) RETURNS GEOMETRY
external name [SpatialAggregate].[SilverlightEarth.Geoquery.SqlClr.UnionAggregate]
sp_configure 'clr enabled', 1;
Now you are all set to use this table as the source of your reports.
SQL 2012 has integrated these features and hence if you are using SQL 2012, you can aggregate both geography and geometry data types using the built in functions Geometry::UnionAggregate(geom) and Geography::UnionAggregate(geog). Refer the blog below
“ UnionAggregate() combines multiple spatial objects into a single spatial object, removing interior boundaries, where applicable.
SELECT Geography::UnionAggregate(geog) FROM Counties
WHERE name = 'Washington'; “
